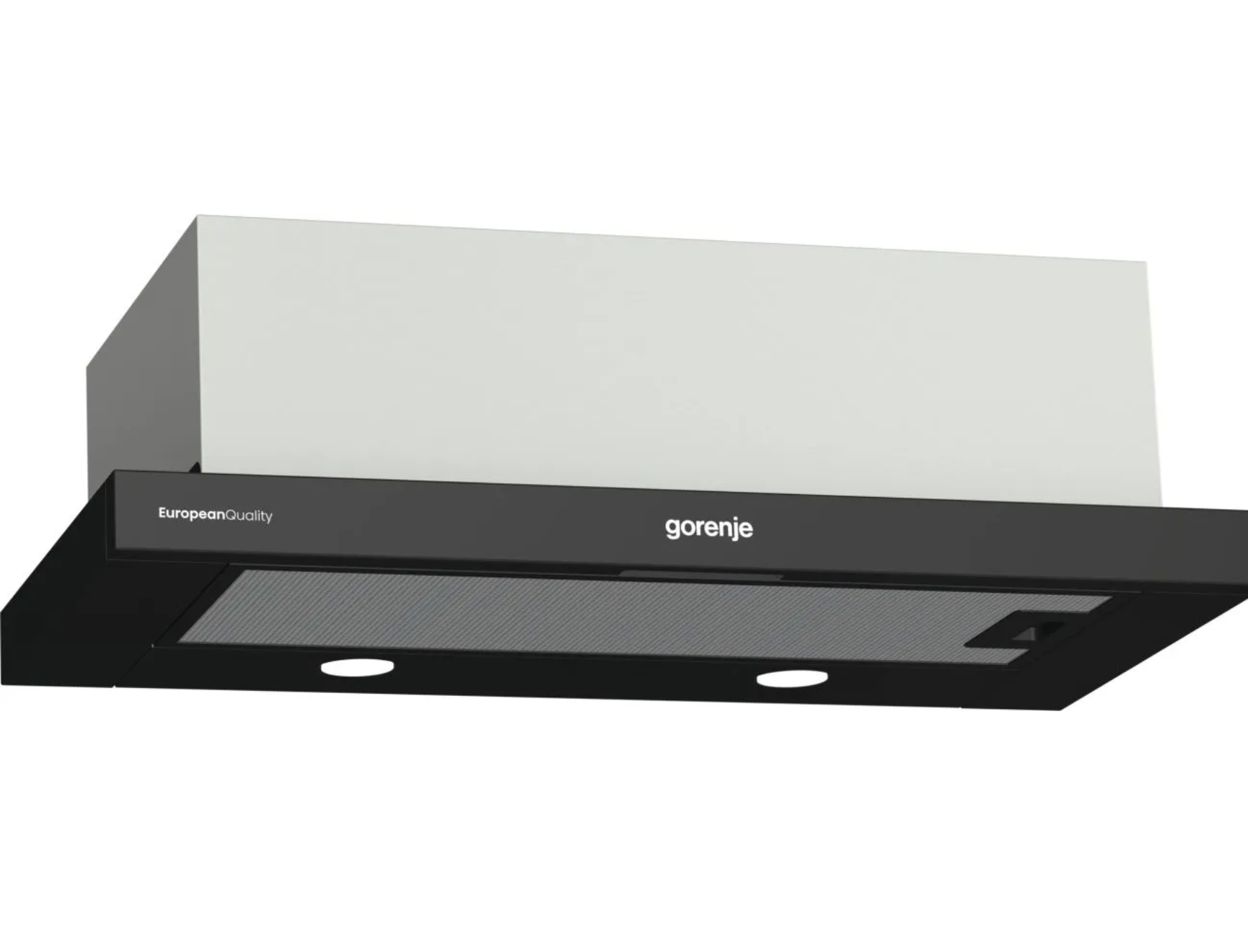

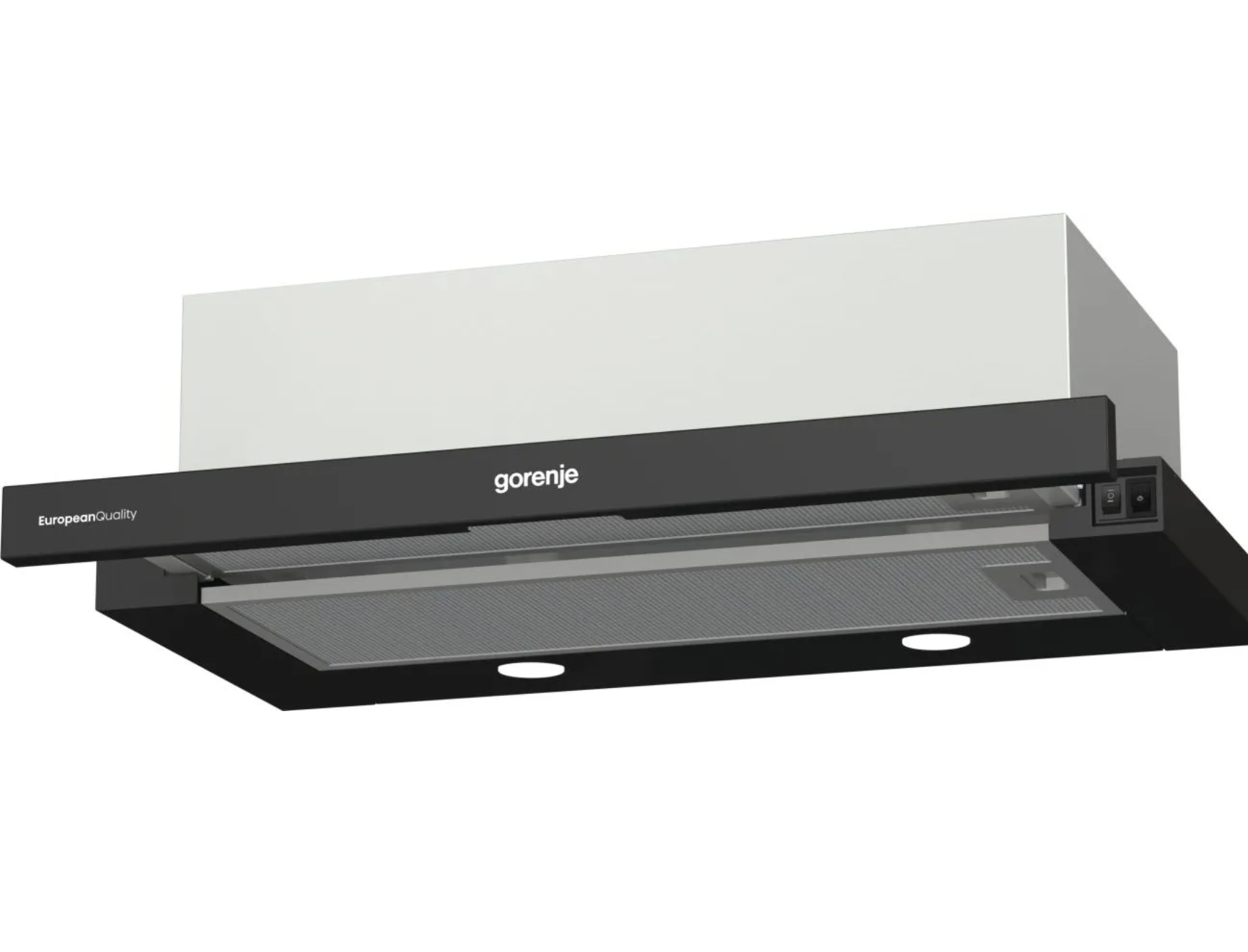

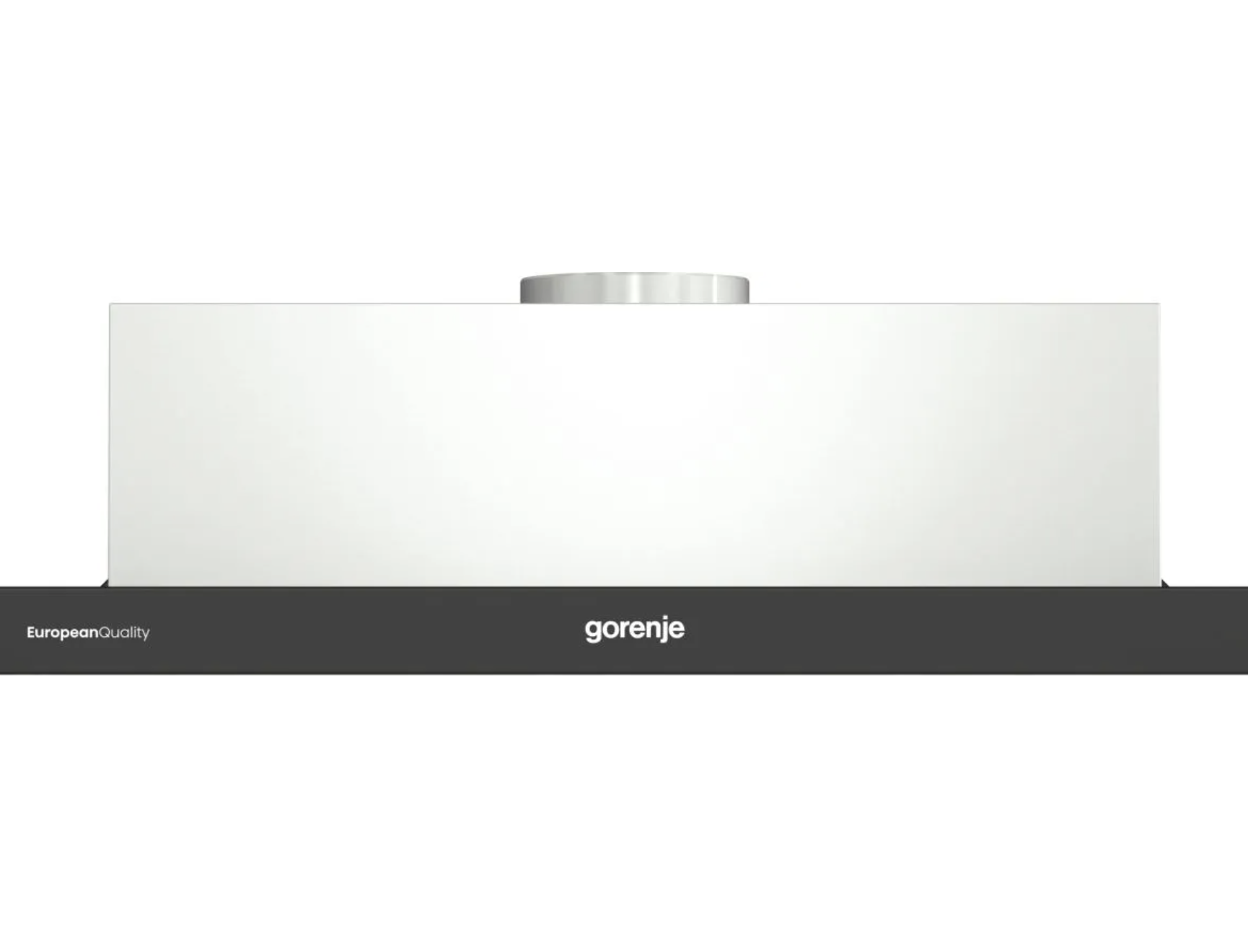

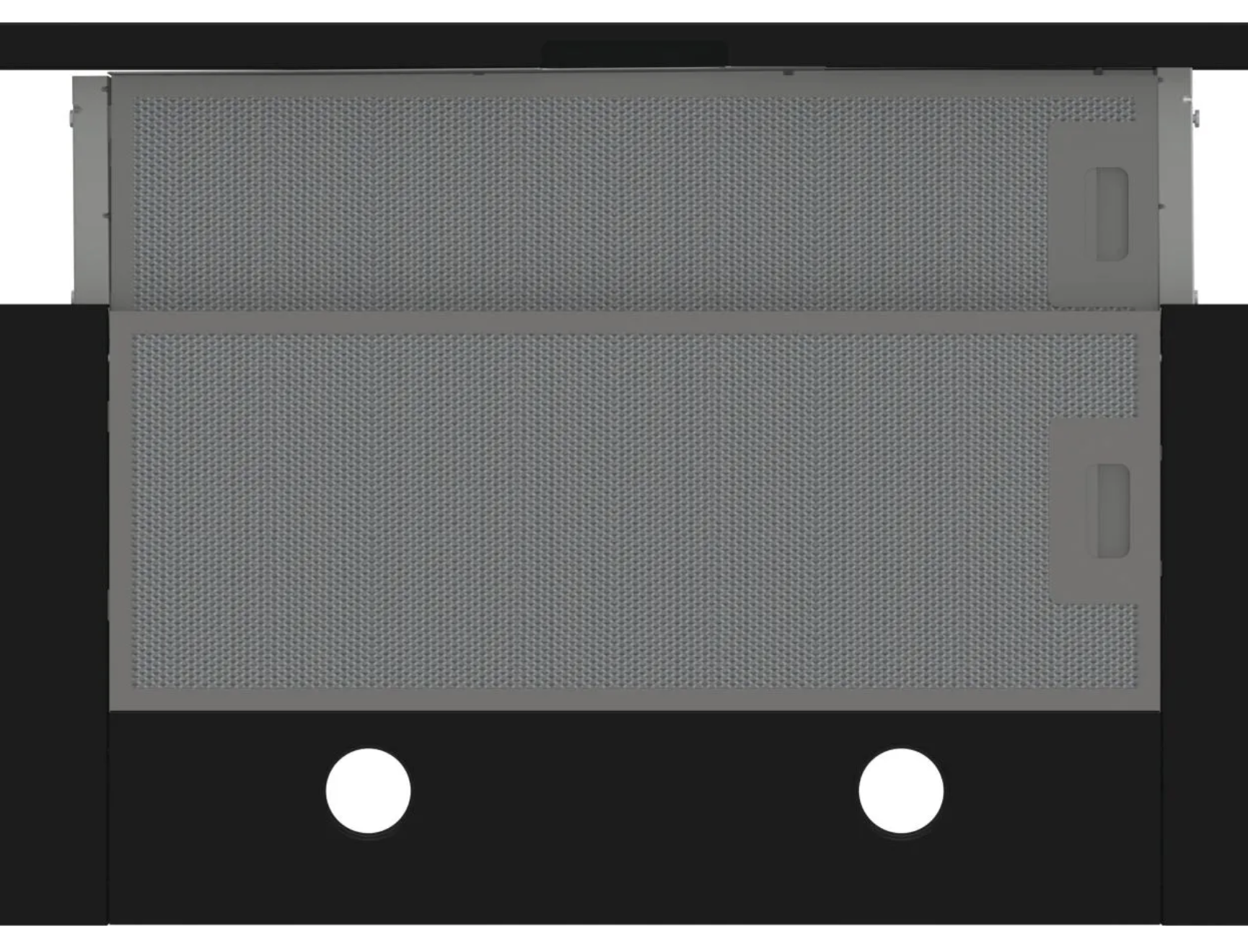

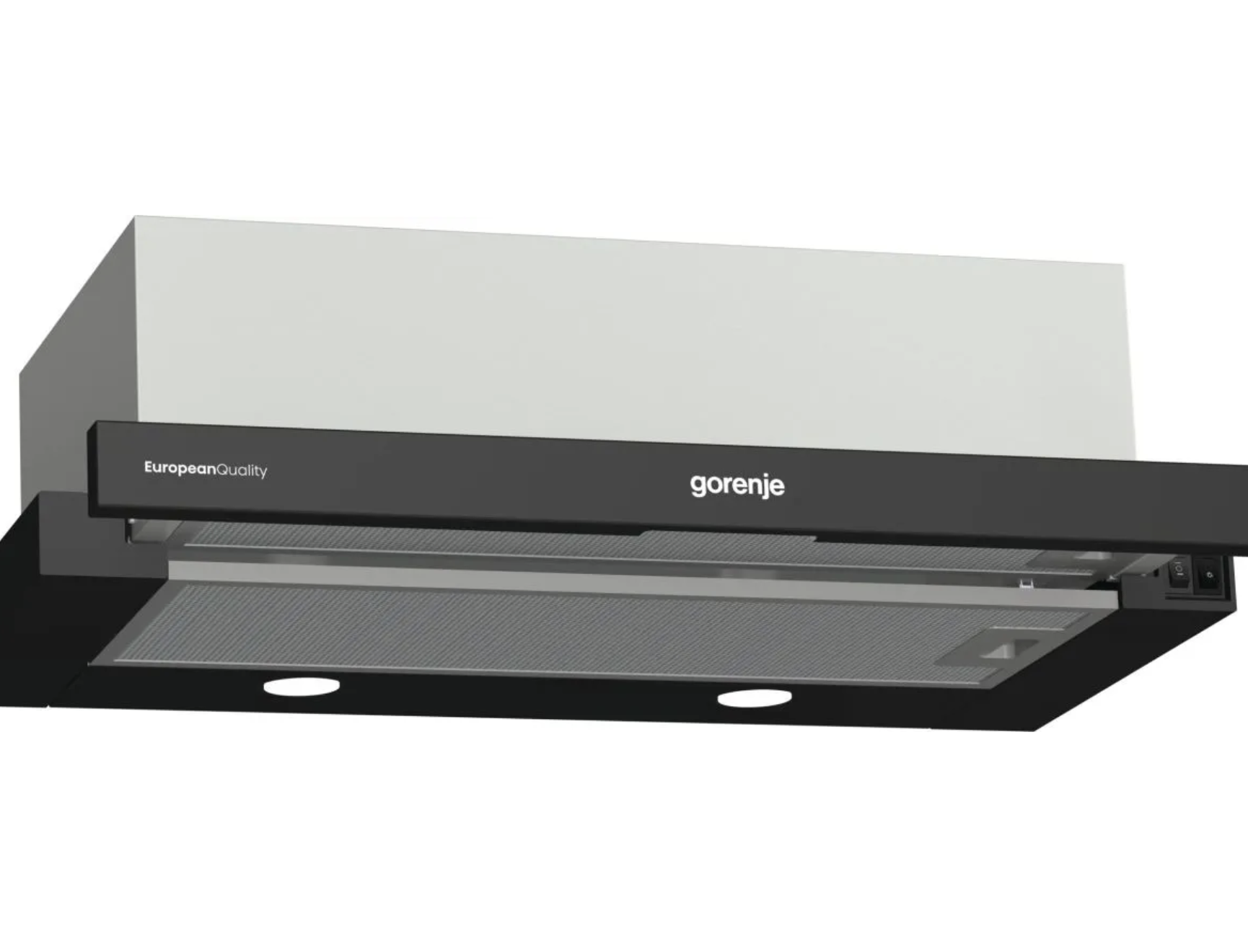

BHP604EXB

Telescopic Hood, 60 cm

Integrated built-in cooker hood

Product code: 745090 | Integrated built-in cooker hood | Wall mounted cooker hood | Control setting: Button control | Max. noise level: 64 dB(A)re 1 pW | Maximum extraction rate by extraction operation: 289 m³/h | Energy class: D | Gorenje | Product line: Essential Line | Product line: G400 | Dimensions (W×H×D): 59.5 × 17.6 × 30 cm

Product Technical Details Support

Technical Details

Wall mounted cooker hood
Venting with air extraction or recirculation
Energy class: D
Material of housing/chimney: varnished steel / varnished steel
Colour of housing/chimney: black / black
Lightning efficiency class: A
Grease filtering efficiency class: E
Fluid dynamic efficiency class: E
Maximum extraction rate by extraction operation: 289 m³/h
Venting tube diameter: 15 cm
Air flow by extraction version, step 1: 203 m³/h
Air flow by extraction version, step 2: 289 m³/h

Mechanic control
Control setting: Button control
Number of speed positions: 2
Lamp type: LED
On/off light switch
Number of lights: 2

Filter material: Aluminium
Number of filters: 1
Number of charcoal filters: 2
Washable grease filter
Motor type: Capacitor motor
Number of motors: 1
No return airflow flap: 150 mm
Max. noise level: 64 dB(A)re 1 pW
Height: 176 mm
Annual energy consumption: 54.5 kWh
Dimensions (W×H×D): 59.5 × 17.6 × 30 cm
Dimensions of packed product (W×H×D): 64.3 × 36.2 × 23.8 cm
Net weight: 5.3 kg
Gross weight: 6.7 kg
Product code: 745090
EAN code: 3838782905377

Support

Installation drawing Product sheet
